Name: Erico Caddy PHKR Pyramid H-Frame Kit 1500lb Rubber Interface
Brand: Caddy
Price: 463.93 USD
Availability: OutOfStock

Erico Caddy PHKR Pyramid H-Frame Kit 1500lb Rubber Interface

✨ Fresh Out Of Stock

Erico Caddy PHKR Pyramid H-Frame Kit 1500lb Rubber Interface

Foam or rubber bottom offers low abrasion interface for better roof membrane protection

Compatible with roof surfaces including single ply, bituminous, metal and spray foam
Provides superior load distribution, even with varying rooftop surfaces
Rubber rooftop interface ideal for solar panel array installations

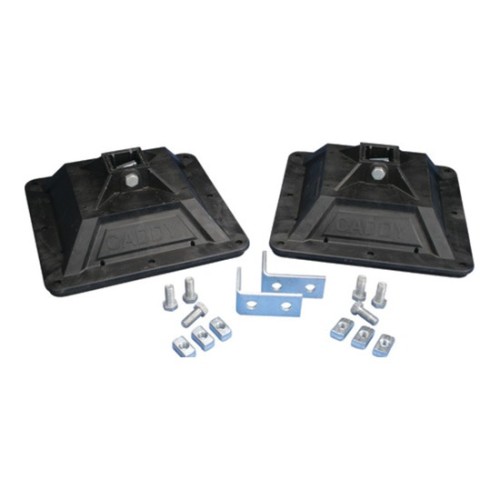

Kit includes 2 post bases with pre-installed mounting hardware, 6 bolts, 6 strut nuts, and 2 L-brackets to complete H-frame
Hot-dip galvanized and UV stabilized for long lasting performance
Accepts standard strut channels
Supports green building requirements; thermoplastic bases are made from recycled material and can contribute to earning LEED credits

SPECIFICATIONS

Material: Polypropylene; Polyethylene

Temperature: -30 to 130 °F

Static Load Safety Factor: 3:1

Static load represents 750 lb (3,335 N) per post base. The end user must select and evaluate the strut framing to ensure the assembled H-frame can properly support the applied load.

0 reviews • Write a review

from

$463.93

Stock: Out Of Stock
Brand: Caddy
Model: PHKR
Weight: 20.00lb
Dimensions: 1.00in x 1.00in x 120.00in

Out of Stock
