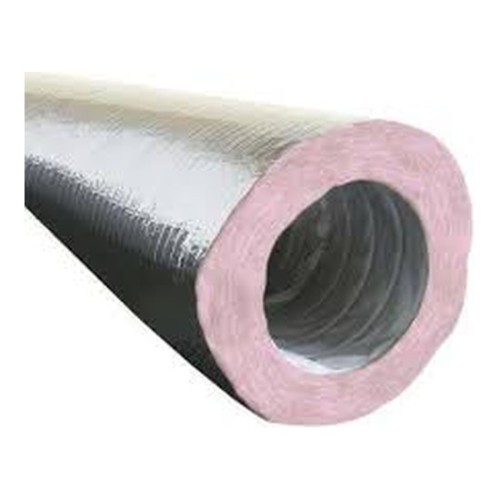

Insulated Duct

Strong polyester film laminated and encapsulating a heavy, corrosion resistant steel wire helix, forms the inner core and supports a thick blanket of fiberglass insulation. The outer vapor barrier is a new bi-directional reinforced metallized vapor barrier which will not unravel. The smooth air tight inner core of polyester is designed for low to medium pressure systems.

KM Specs

Diameter	4-20 inches ID
Pressure Rating	(WG)
Positive	10 inches (4˝-16˝ ID) 6 inches (18˝-20˝ ID)
Negative	1 /2 inch (4˝-20˝ ID)
Velocity	5000 FPM
Temp. Range	-20°F – 250°F cont.
R-Value	R-8.0
GREENGUARD Certifications	GREENGUARD Indoor Air Quality Certified GREENGUARD Children and Schools Certified

0 reviews • Write a review

Available Options

SIZES

4in ($328.60)

6in ($339.73)

7in ($352.11)

8in ($357.79)

9in ($375.63)

10in ($384.11)

12in ($414.69)

14in ($442.89)

16in ($489.30)

Call or contact us to place an order for this product.

Tags: 25ft , air , duct , flexible , insulated , r-6 , r-8 , thermaflex
