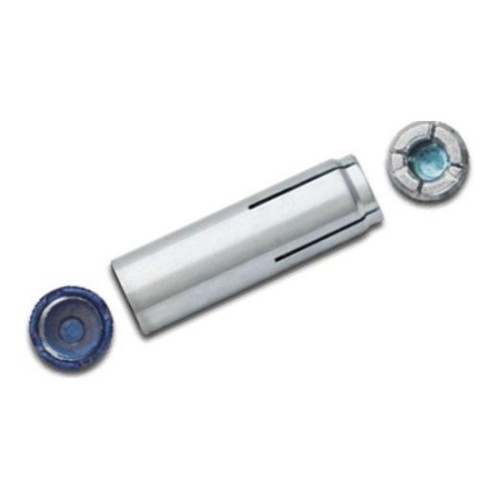

SMART DROP IN INTERNALLY THREADED EXPANSION ANCHOR (PER BOX)

✨ Fresh

SMART DROP IN INTERNALLY THREADED EXPANSION ANCHOR (PER BOX)

The Smart DI is an all-steel, machine bolt anchor available in carbon steel. It can be used in solid concrete, hard stone, and solid block base materials. The Smart DI is specifically designed to be easier to fully set during installation as a benefit to the user.

FEATURES

Installs with reduced effort compared to traditional drop in style anchors
Can be installed using the manual setting tool or Smart DI system with a hammer-drill
Setting indicater makes identification of properly set anchors easy (when installed using the smart tool and smart bit)
Internally threaded anchor for easy bolt removability and service work
Anchor can be installed through standard fixture holes

SPECIFICATIONS

CATALOG NUMBER	ANCHOR SIZE	ANCHOR LENGTH OVERALL	INTERNAL THREAD DEPTH	STD BOX	STD CTN	WEIGHT PER 100 LBS
6304SD	1/4"	1"	7/16"	100	1,000	2
6306SD	3/8"	1-9/16"	5/8"	50	500	6
6308SD	1/2"	2"	13/16"	50	500	12

0 reviews • Write a review

from

$30.39

Stock: In Stock
Brand: Dewalt Anchors
Model: DI
Weight: 2.00lb
Dimensions: 1.00in x 1.00in x 120.00in

Available Options

Drop In Size

6304SD - 1/4" Drop In (100/bx) ($64.41)

6306SD - 3/8" Drop In (50/bx) ($51.61)

6308SD - 1/2" Drop In (50/bx) ($66.03)
